PN FLEX

Pneumatic Manipulator PN Flex

- - - - - -

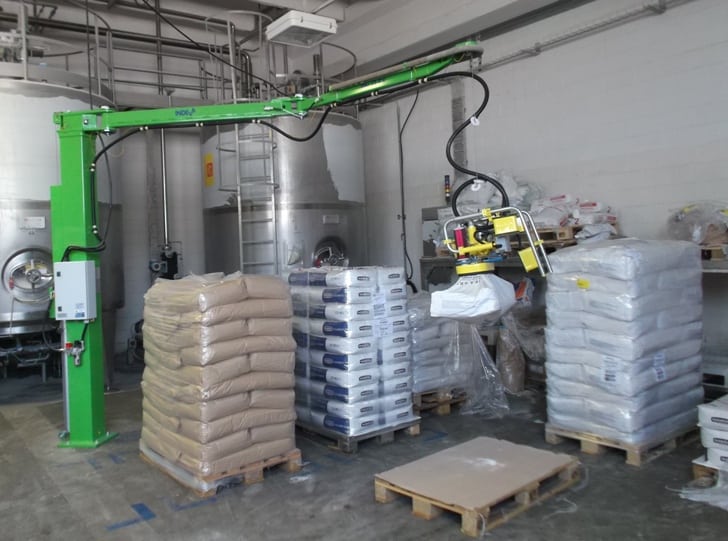

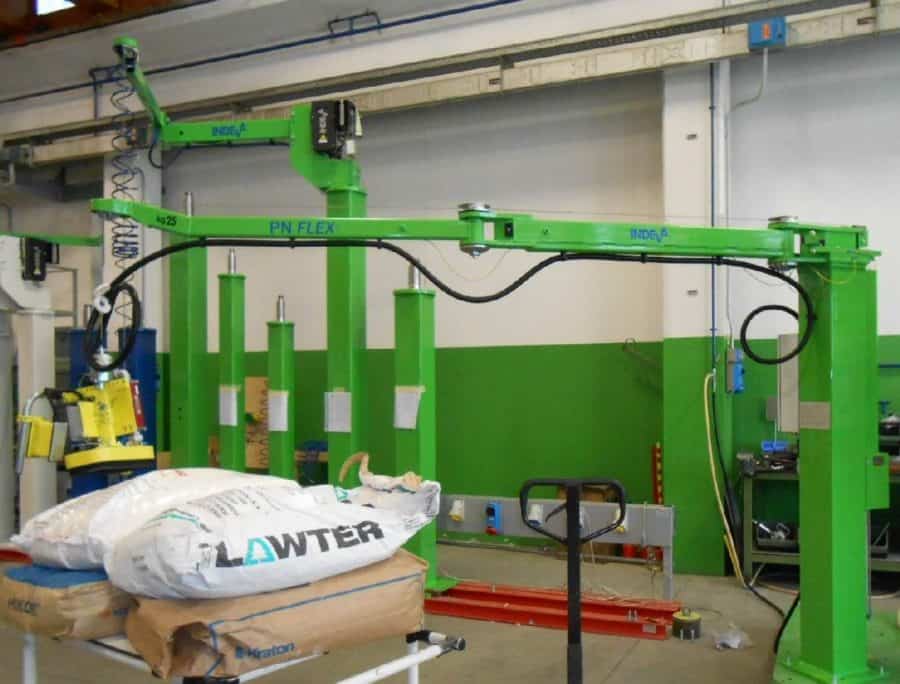

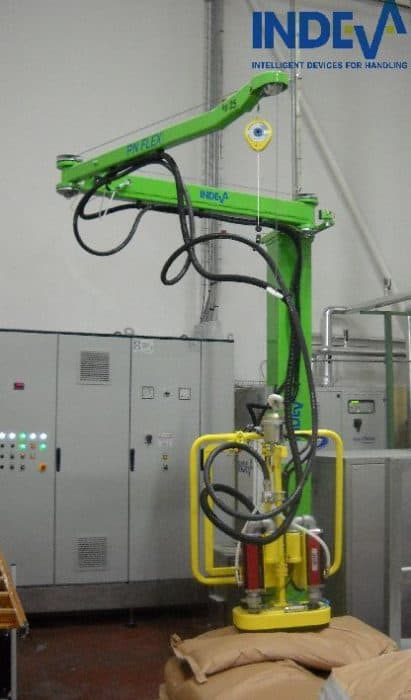

PPneumatic manipulator featuring rope vertical arm. The PN Flex pneumatic manipulators are suitable for handling loads having their barycenter on the Z axis of the vertical arm. They allow flexible load picking/releasing movements.

Main features:

- - - - - -

- Max load capacity: kg 80

- Max lift speed: 45 m/mn

- Control: pneumatic

- Air pressure: 6,0

- Bar Work Temperatures: from +5° to +50° C

- Noise level: <70 dB

- Main joint axis friction

- Intermediate joint axis friction

- Safety devices: in case of pressure failure slow descent till the floor

Available options:

- - - - - -

- Conformity to the ATEX Regulations for applications in controlled environments with danger of explosion: – Zone 1/2 (IIA-IIB) for gases- Zone 21/22 (IIIA-IIIB-IIIC) for dusts

- Special painting for Steel platform

- Double rope version

- Rotation blocks on the main joint

- Stainless steel version

- Pressure booster

- 3 joint arm
