PN COMPATTO

Pneumatic Industrial Manipulators

- - - - - -

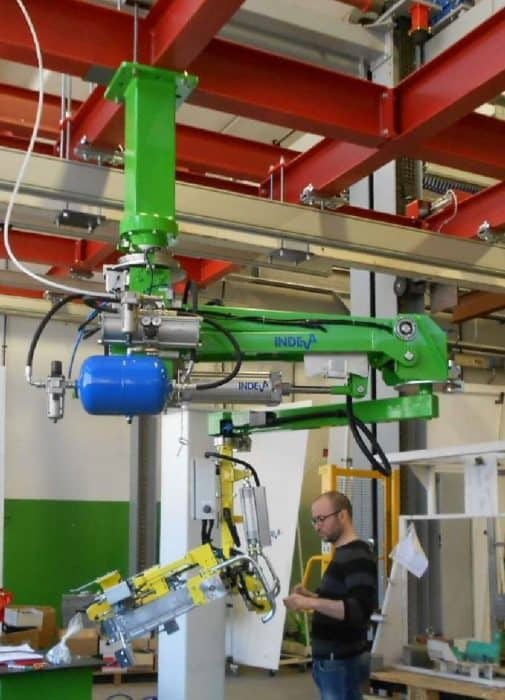

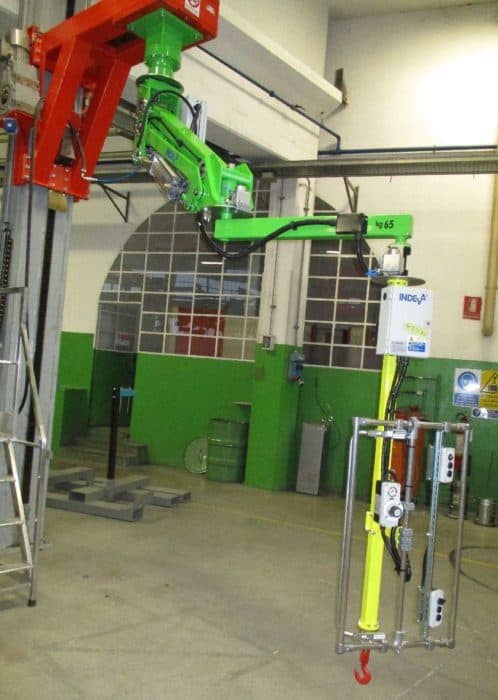

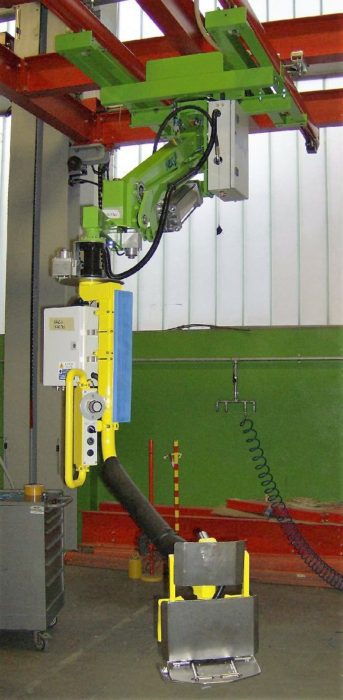

PN COMPATTO are pneumatic industrial manipulators with rigid vertical arm, suitable for applications in small size, low ceiling work areas.

Main features:

- - - - - -

- Lift speed from 15 to 30 m/min

- Control: pneumatic

- Air pressure: min 6 bars

- Work Temperatures: from +5° to +50° C

- Noise level: <70 dB

- Main column axis brake

- Intermediate joint axis brake

- Continuous column rotation

- Safety devices: in case of pressure failure a safety devices retains the grip on the load, and the tooling descends slowly till the floor. Special brakes keep the arm and gripping tool still when not used

Available options:

- - - - - -

- Rotating joint on the articulate axis

- System lock for the lift capacity

- Brake for up/down movement

- Double braking force on the main and intermediate axis

- Special painting

- Sliding trolley
